CHAIN WHEELS
Traction when you need it.
Available in 6, 8, 10, 15, and 18 Strand.

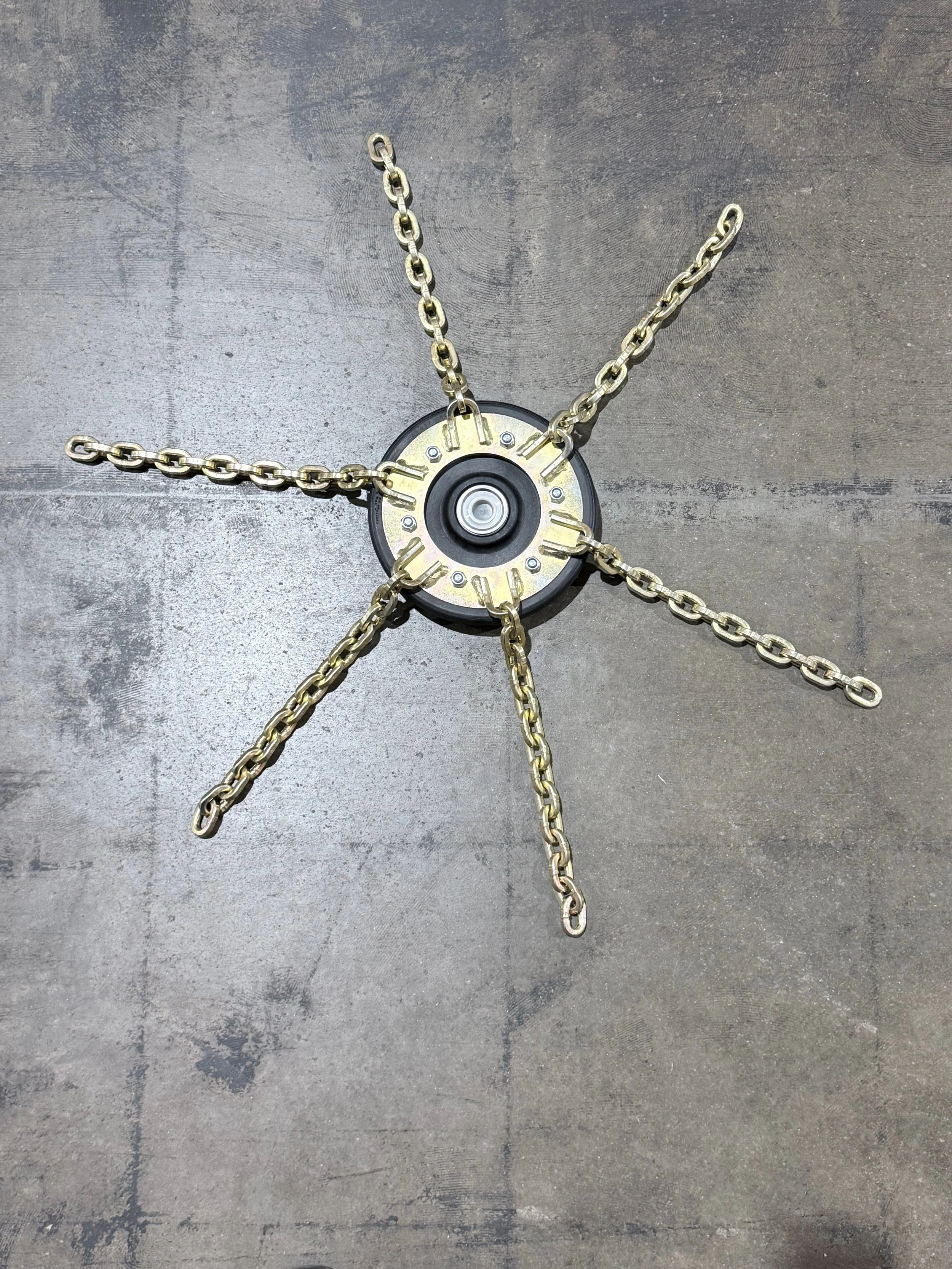

6 strand
-
-195mm diameter chain wheel with a square edge chain.
-Provides traction at speeds as low as 4-5MPH.
-Perfect option for large tires with deep tread.

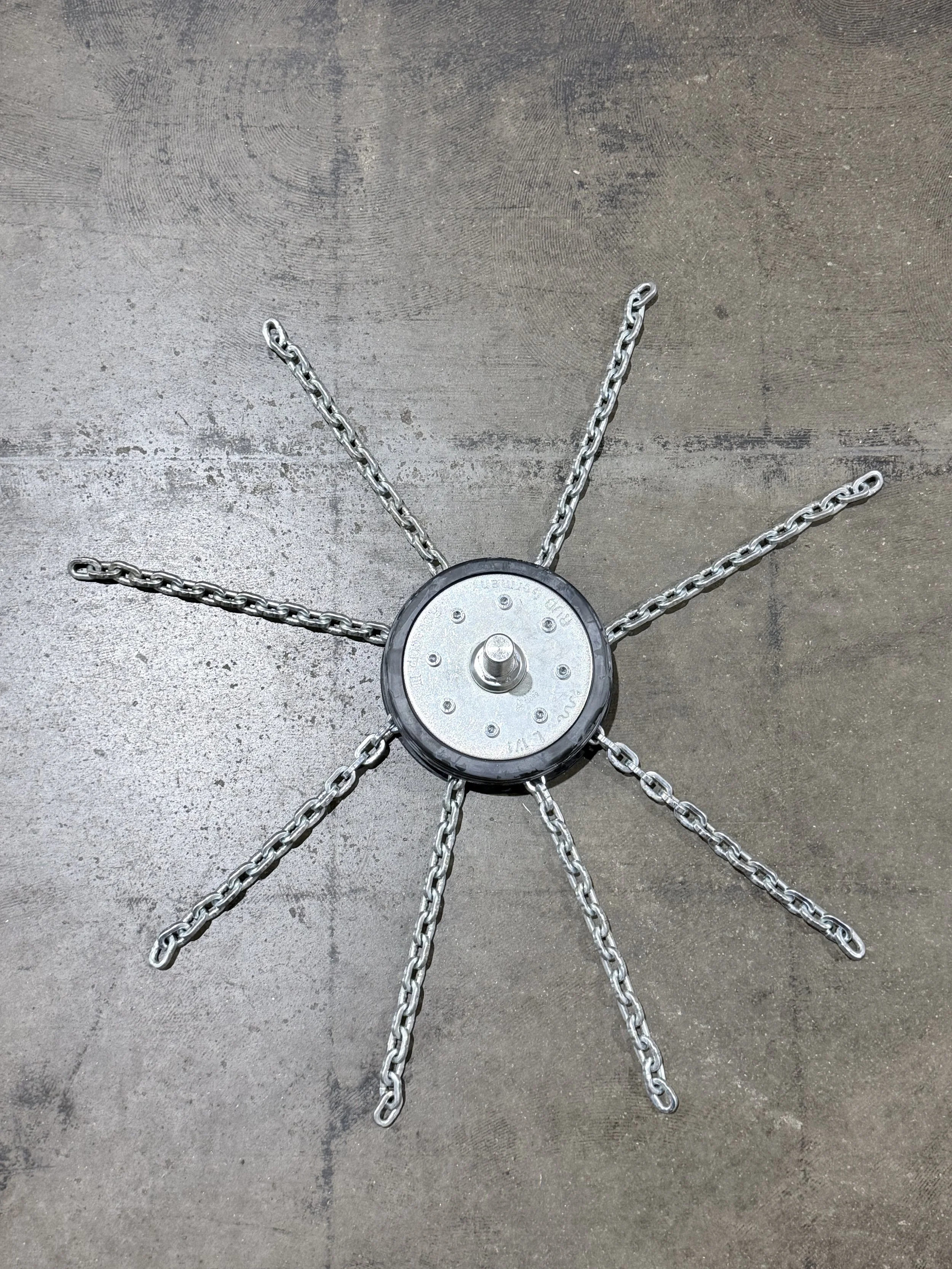

8 strand
-
-150mm diameter chain wheel with a square edge chain.
-Ideal for smaller diameter tires (R19.5 and smaller)
-Traction at speeds as low as 1-2MPH.
-Standard wheel for ROTO III (Light Truck)

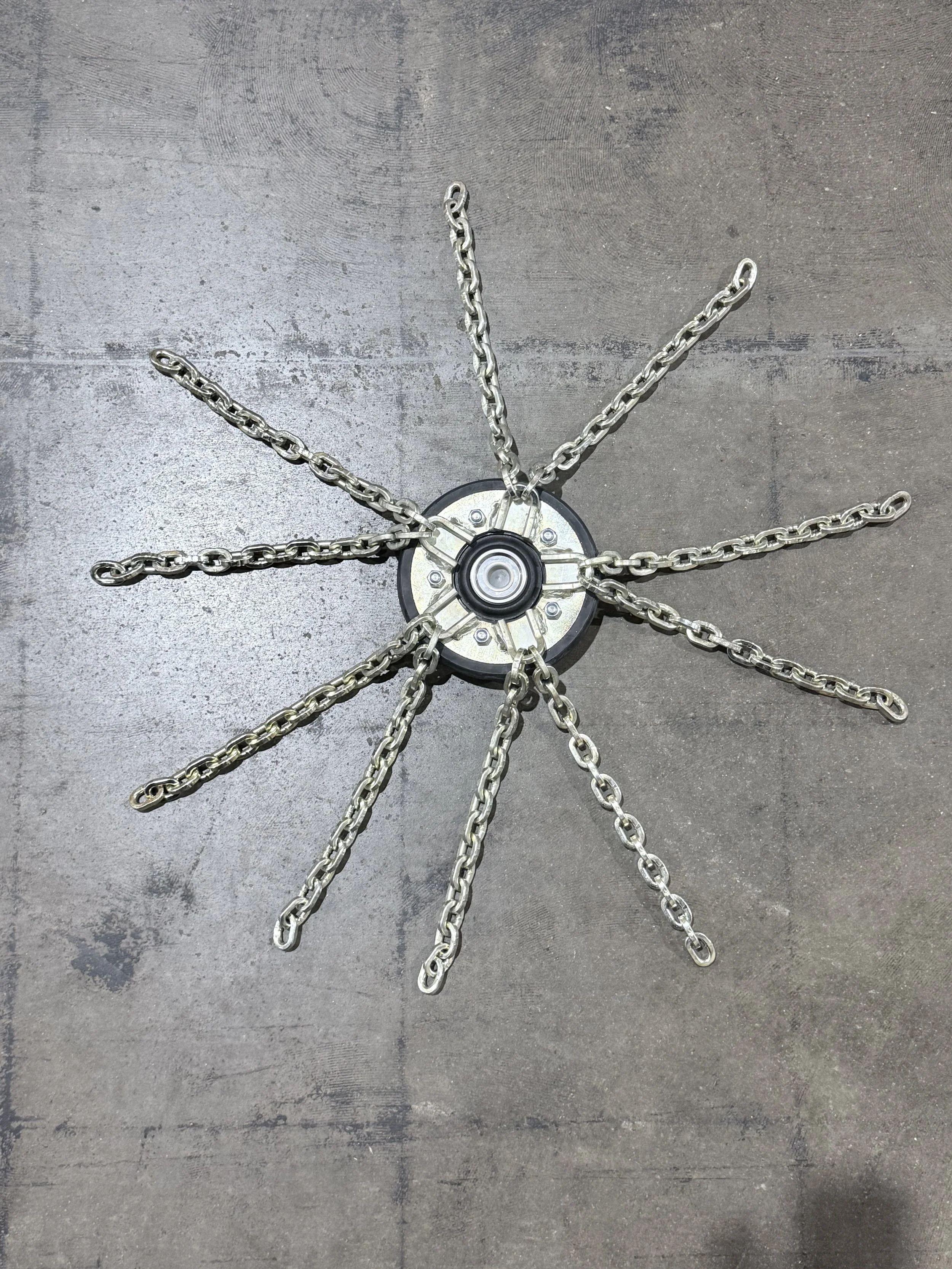

10 strand
-
-160mm diameter chain wheel composed of 5.5mm square edge chain (5 bundles of 2)
-Traction at speeds as low as 3-4MPH.
-Great for limited space applications on larger diameter tires where traction at lower speeds is important.

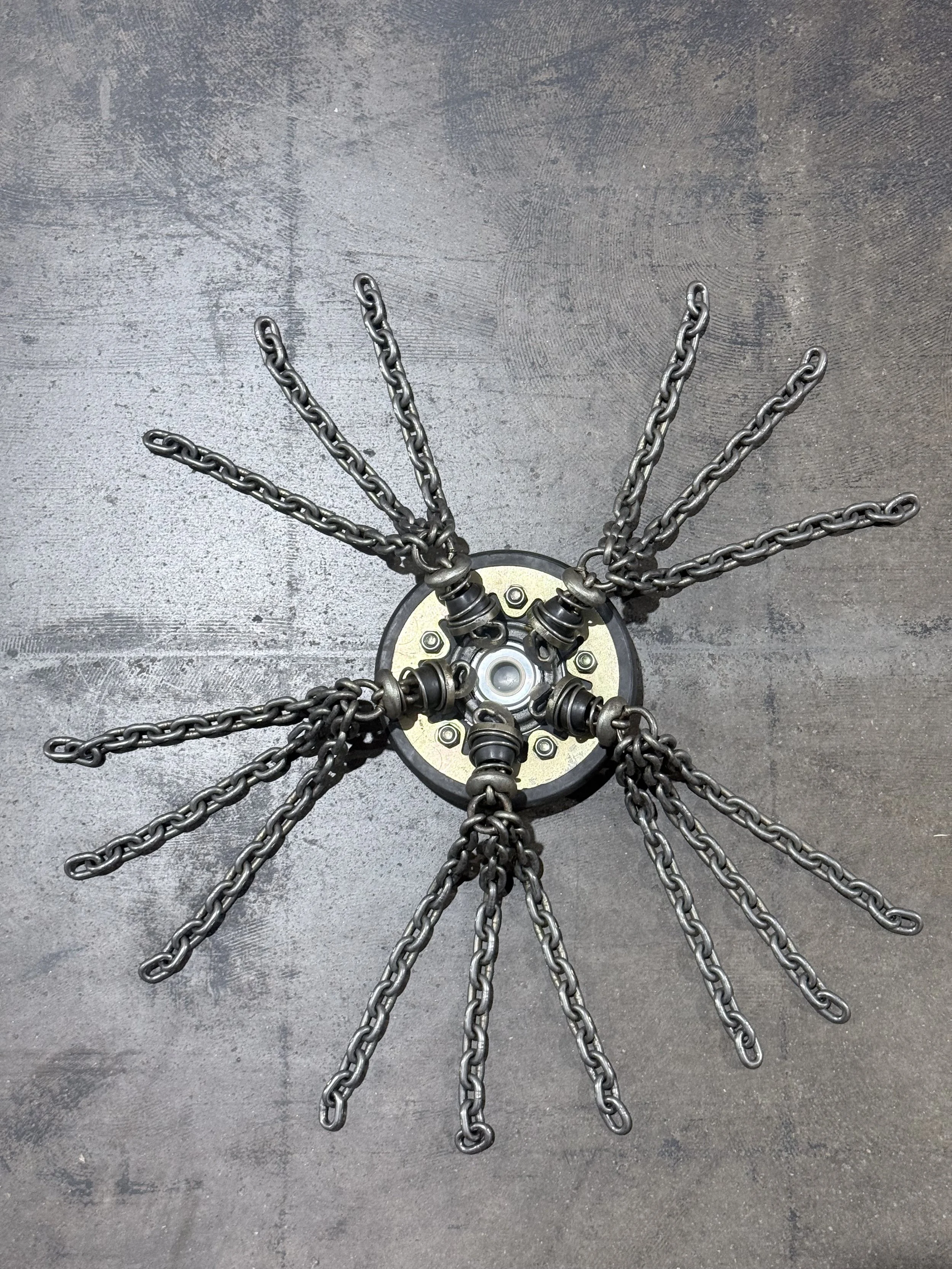

15 strand
-
-160mm diameter chain wheel composed of 5.5mm square edge chain (5 bundles of 3)
-Traction at speeds as low as 2-3 MPH.
-Great for limited space applications on larger diameter tires where traction at lower speeds is important.

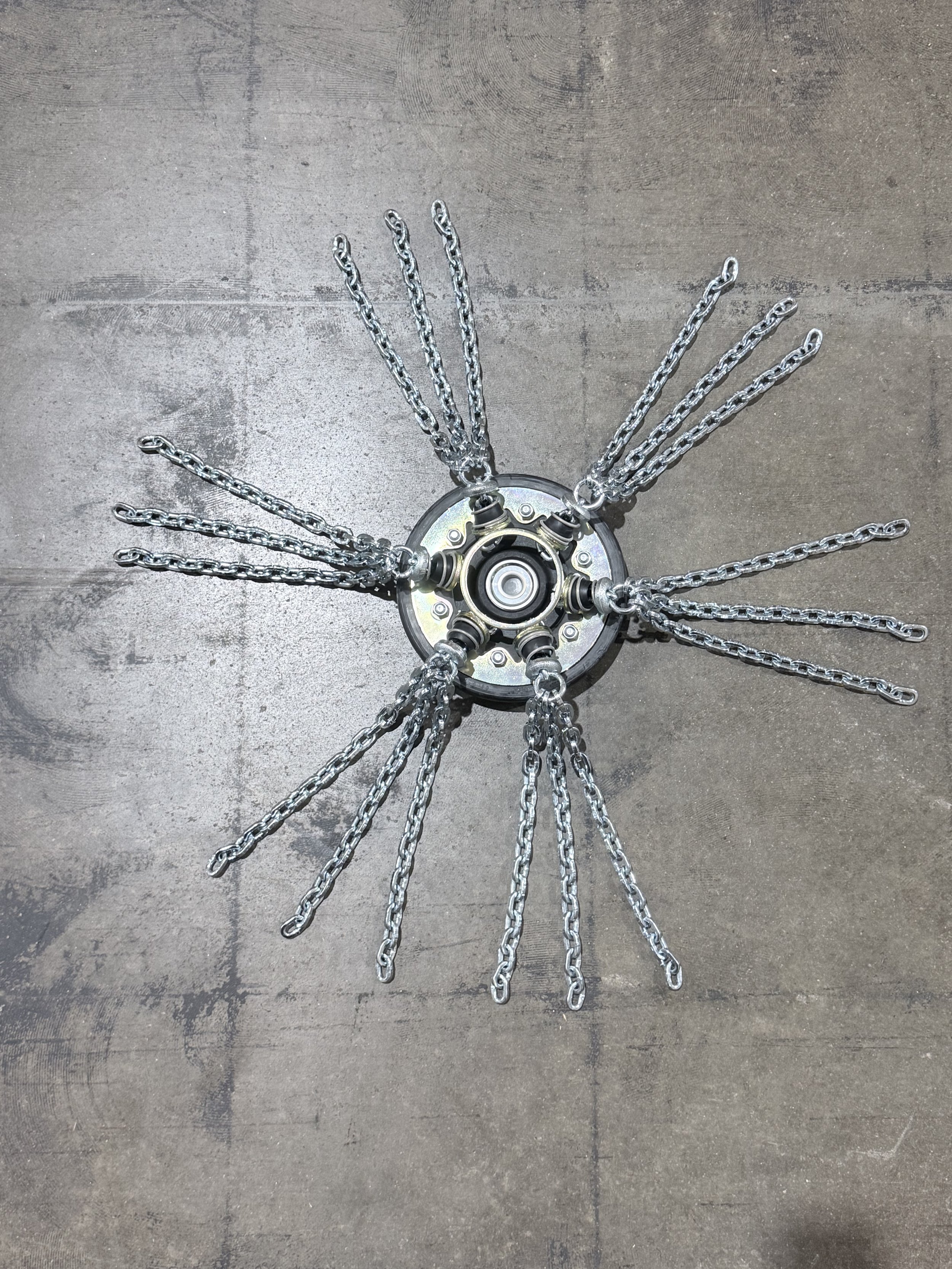

18 strand
-
-195mm diameter chain wheel consisting of 18 strands (6 bundles of 3) of 4.5mm square edge chain.
-Traction at speeds as low as 2-3MPH.
-Ideal for large diameter tires where forward and reverse traction is needed.
