elasto® APEX

Extreme traction for machines with rubber tracks. Ultimate grip on challenging terrain.

Maximum traction and lateral support.

The HETTEC® ELASTO Apex is the top model of the ELASTO series and was developed for extreme off-road use with machines on rubber tracks.
The system ensures maximum power transmission, maximum gradeability and secure lateral support, even under the most difficult conditions.

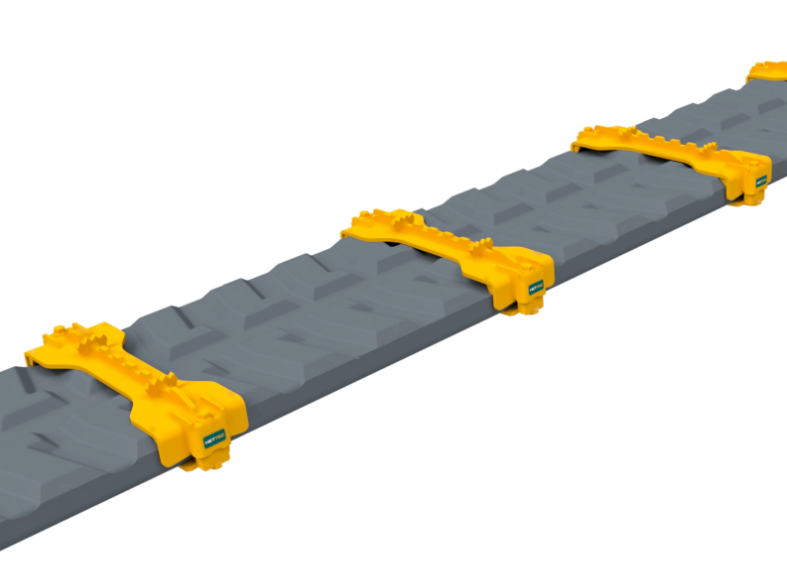

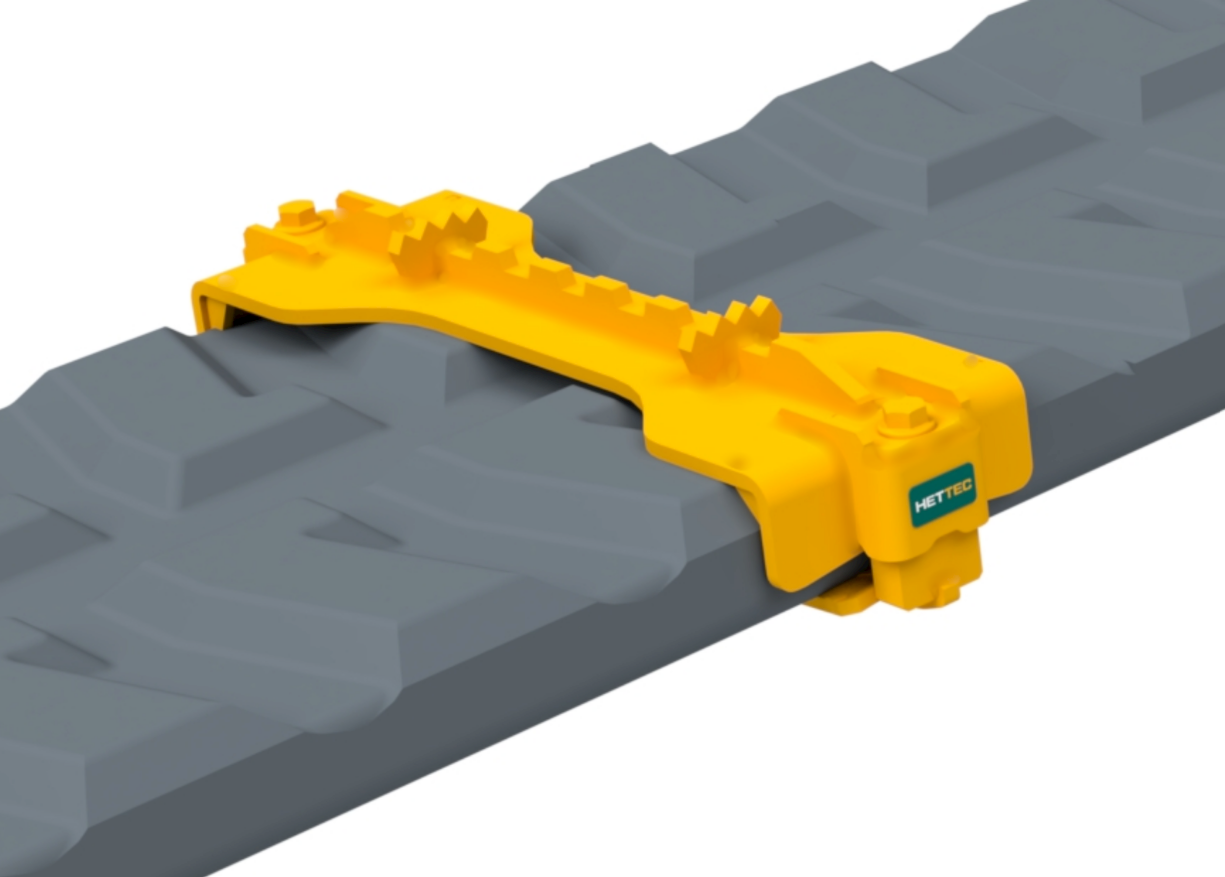

The attached traction bars are securely fixed to the rubber track via the HETTEC® CTS (Clamp Tension System).

Made of high-strength fine-grained steels with a continuous traction web, the ELASTO Apex offers maximum stability, high wear resistance and uncompromising performance in professional use.

  • Recommended quantity

    8 pieces per drive, 16 pieces in total

    Mounting system

    Patented HETTEC® CTS – shell and clamping system; one-sided screw connection (ELASTO Apex 400); Double-sided screw connection (ELASTO APEX 450)

    Compatibility

    Independent of the machine and chain manufacturer

    Drive Type

    Rubber tracks, universal profiles

    Machine Type

    Compact excavators with rubber tracks up to 10 tons operating weight

    Material

    High-strength fine-grained and wear steels

    Assembly time

    approx. 20–30 minutes

  • Available in:

    ELASTO Apex 400 - for 400mm wide rubber tracks, with HETTEC CTS and one-sided bolting.®


    ELASTO Apex 450 - for 450mm wide rubber tracks, with HETTEC CTS and bolting on both sides.®

  • Forestry, steep slopes, mud, snow, ice, ski slopes, icy forest roads, rough terrain, side slopes

CONTACT US TO REQUEST A QUOTE OR for more INFORMATION

Is HETTEC® the right solution for you? Contact us now.

GET IN TOUCH
