GEKKO® COMPACT PRO
The ultimate traction solution for compact machines- maximum lateral support and perfect for use on ice.

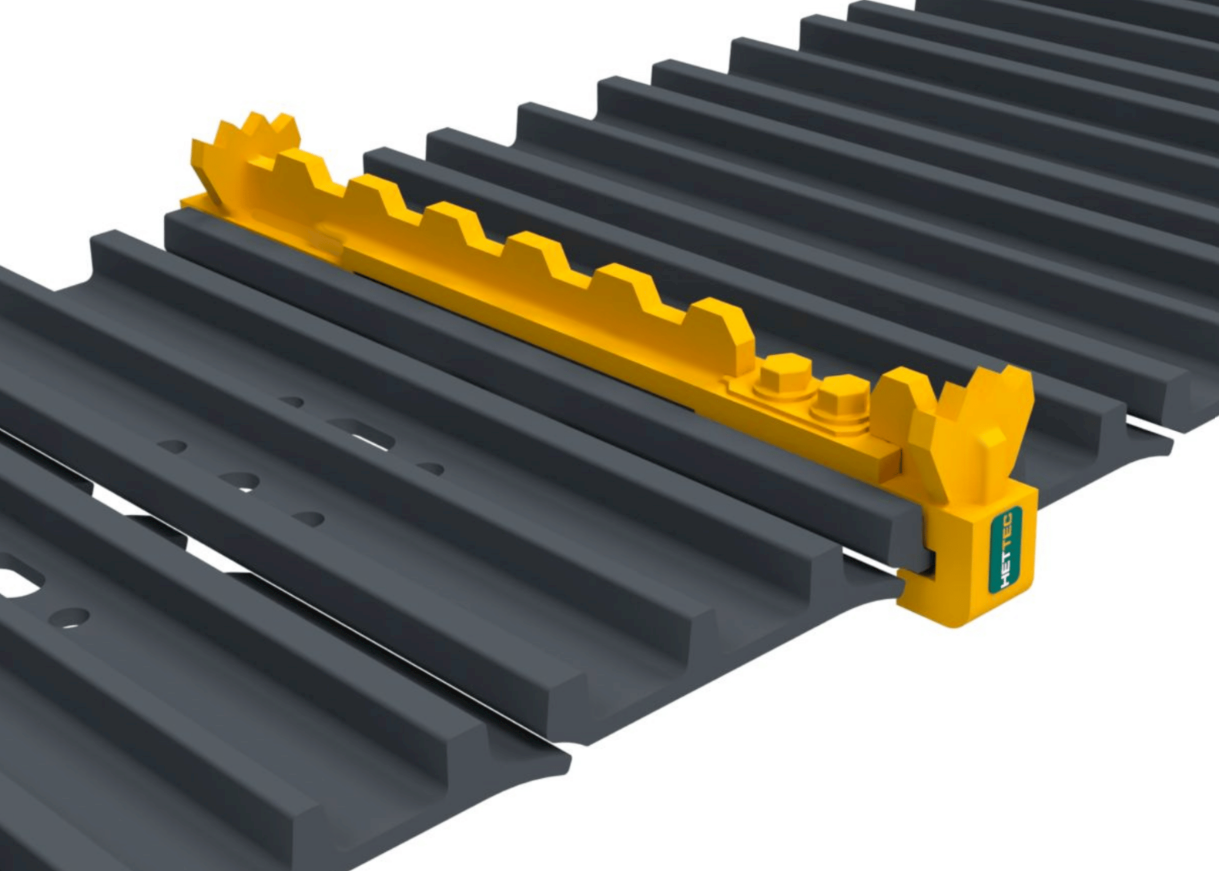

The GEKKO® Compact Pro is specifically developed for compact machines and delivers maximum traction and stability at low operating weight. Designed for compact excavators up to 10 tons, as well as crawler cranes, drilling rigs, and mast systems, it ensures reliable propulsion and precise side stability-even under challenging conditions.
The aggressive grouser geometry, combines with integrated ice claws and a sharp tooth profile, penetrates the ground effectively and enables controlled operation even on icy, steep, or unstable surfaces.

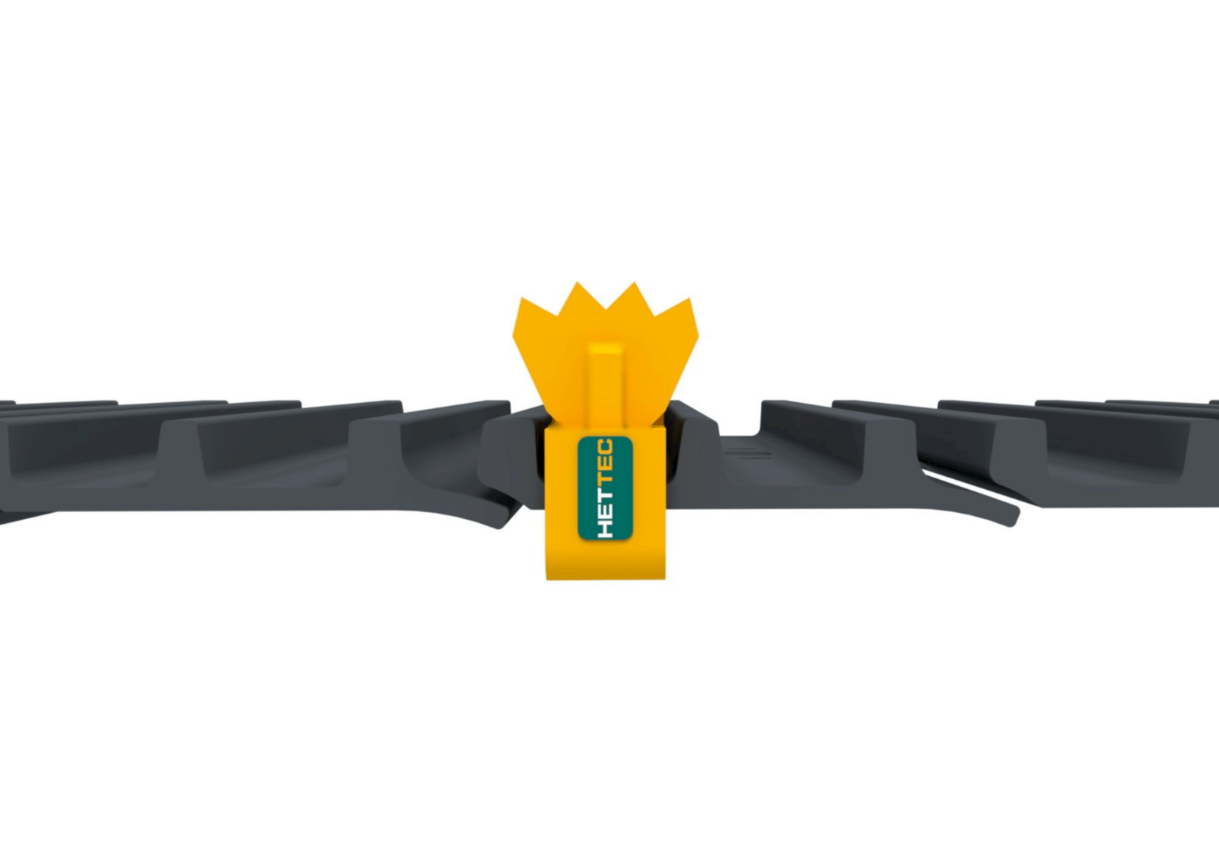

Additional vertical side plates with fine serration significantly enhance side grip and provide maximum safety during lateral movements.
-
Recommended quantity

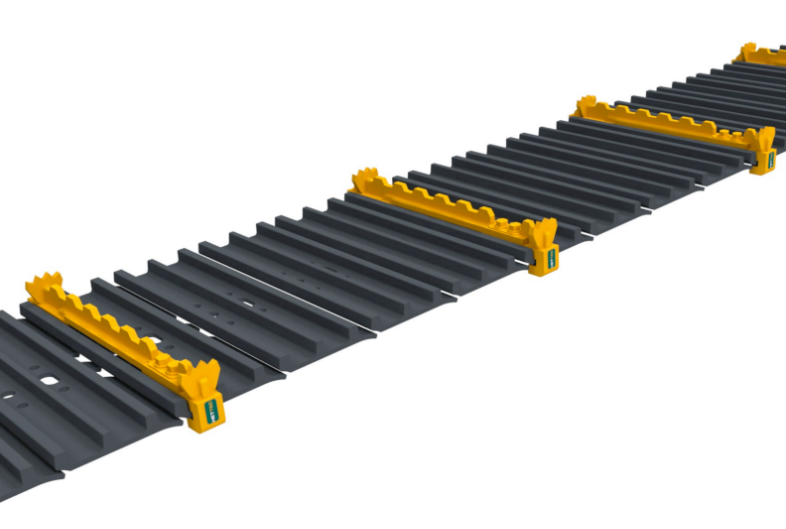

Equipping of every fourth to fifth base plate
Mounting system
Patented HETTEC® DSS – Double Safety System; Positive fit with double safety screw connection
Compatibility
Independent of the machine and chain manufacturer
Drive Type
for 3-web floor plates of compact machines
Machine Type
Compact machines up to 10 tons. Operating weight, as well as special machines such as crawler cranes, drilling rigs, tilting masts and more
Material
High-strength wear steels
Assembly time
Total approx. 20–30 minutes
-
400MM
450MM
500MM
550MM
600MM
700MM
-
Forestry, steep slopes, mud, snow, ice, ski slopes, icy forest roads, rough terrain
