GEKKO® extreme

The ultimate traction solution for medium-sized machines- maximum lateral support and perfect for use on ice.

Maximum grip. No compromises.

The GEKKO® Extreme is the uncompromising traction system for the most extreme off-road conditions. Designed for tracked machines in the 10-to-40-ton operating weight ranges, it delivers maximum propulsion, extreme lateral stability, and unrivalled grip- even where other systems reach their limits.

Whether rock, steep slopes, deep mud or loose ground: the aggressive web geometry with additional claws grips the ground without compromise and ensures maximum power transmission under the toughest loads.

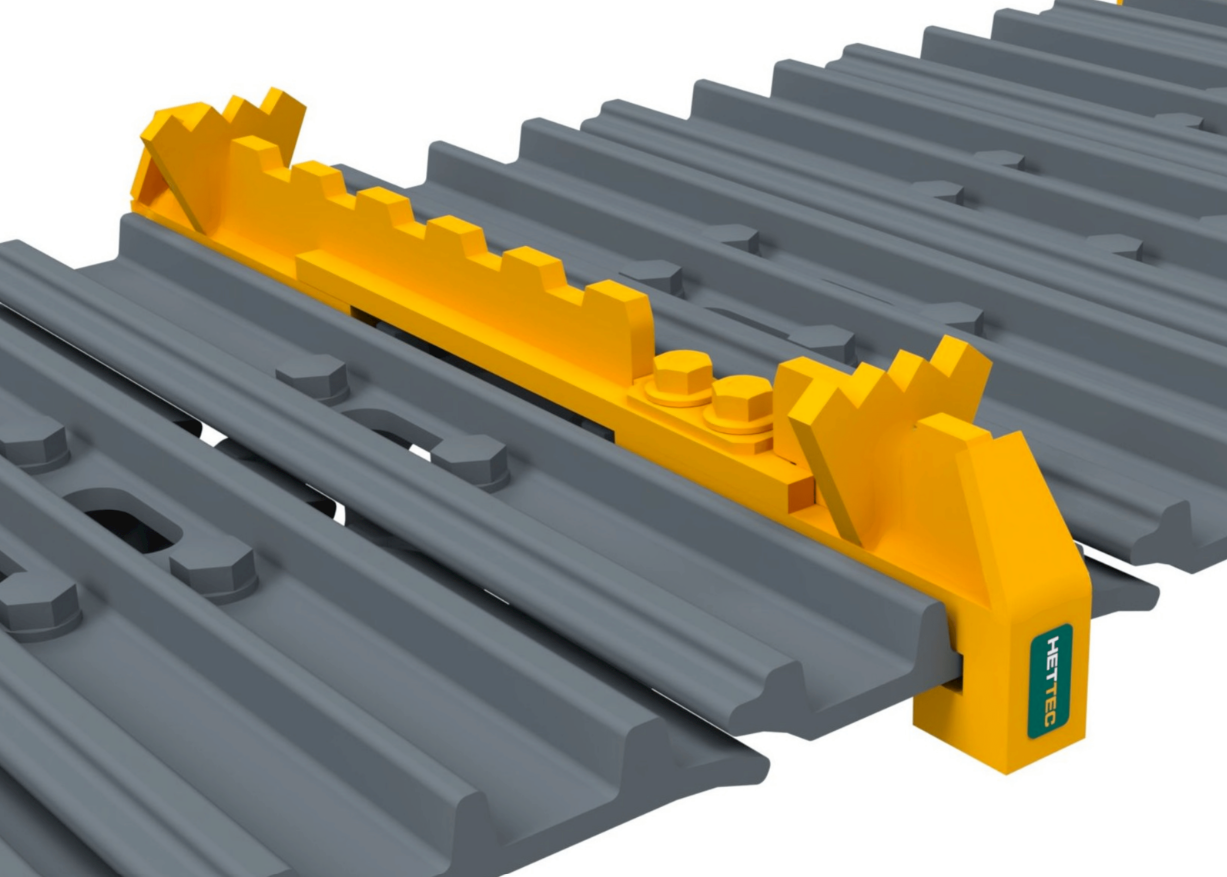

With the patented HETTEC® DSS- Double Safety System, the system is fixed to the base plate in a form- fitting manner and screwed in double. This guarantees the highest operational reliability even under the most extreme operating conditions.

  • Recommended quantity

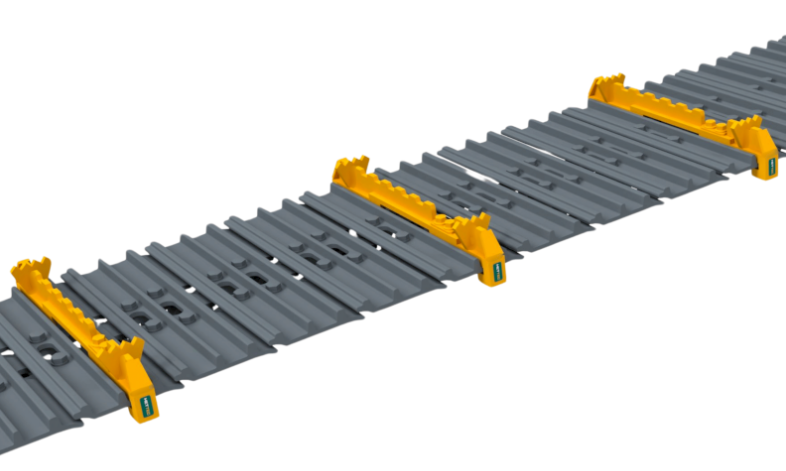

    Equipping every fourth floor slab; 20 tons excavator = approx. 24 pieces in total

    Mounting system

    Patented HETTEC® DSS – Double Safety System; Positive fit with double safety screw connection

    Compatibility

    Independent of the machine and chain manufacturer

    Drive Type

    for 3-bar floor plates (optional for 2-bar floor plates)

    Machine Type

    Mid-size machines from 11 - 40 tons operating weight

    Material

    High-strength wear steels

    Assembly time

    approx. 20–30 minutes (per machine)

  • Base plate - width in mm

    500MM

    550MM

    600MM

    700MM

    750MM

    800MM

  • Forestry, steep slopes, mud, snow, ice, ski slopes, icy forest roads, rough terrain, side slopes
