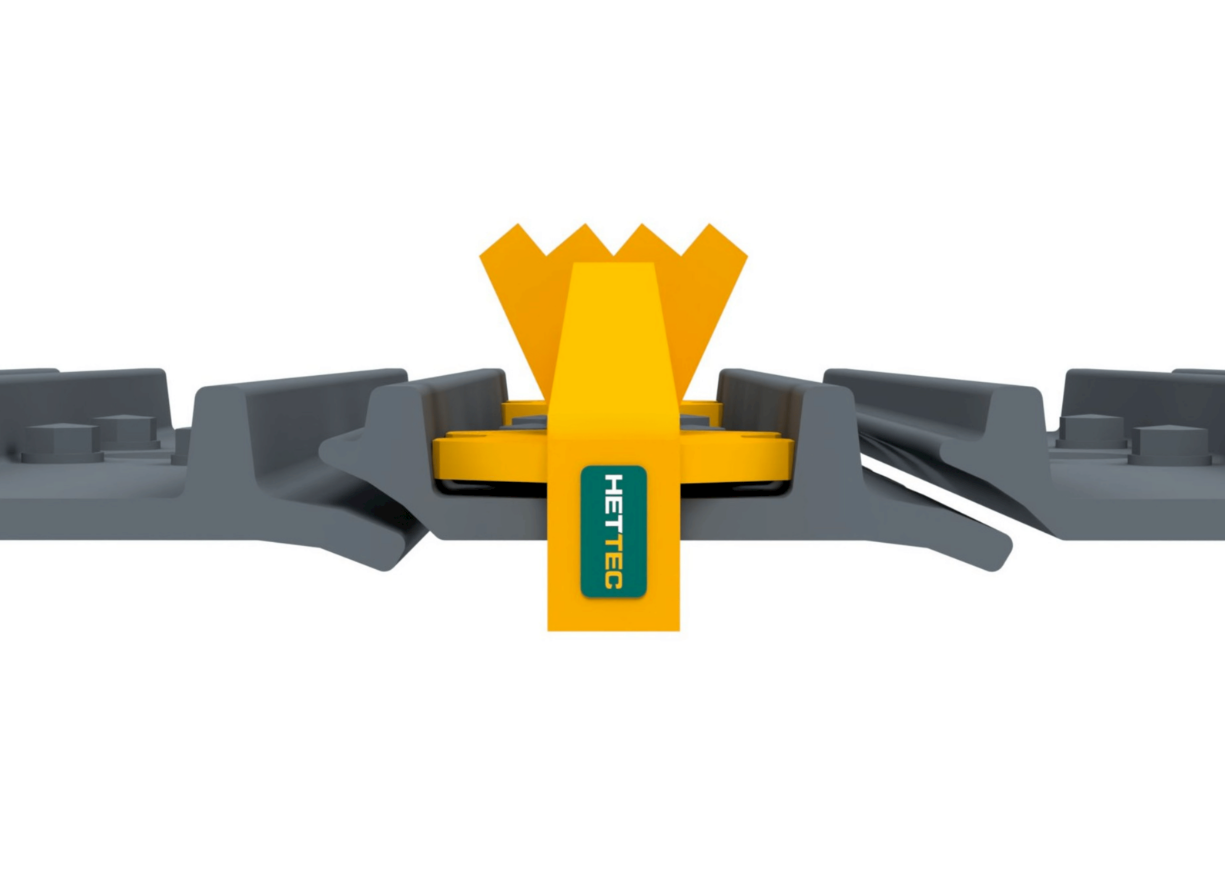

GEKKO® extreme DOUBLE
The ultimate traction solution for 2-bar floor plates – maximum lateral support and perfect for use on ice.
Maximum grip. No compromises.
The GEKKO Extreme - Double is the uncompromising traction system for the most extreme off-road conditions. Designed for tracked machines in the range of 10 to 40 tons operating weight with 2-web base plates, it delivers maximum propulsion, extreme lateral stability and unmatched grip for machines with 2-web base plates (Double Grouser) – even where other systems reach their limits.
Whether rock, steep slopes, deep mud or loose ground: The aggressive web geometry with additional claws grips the ground without compromise and ensures maximum power transmission under the toughest loads.

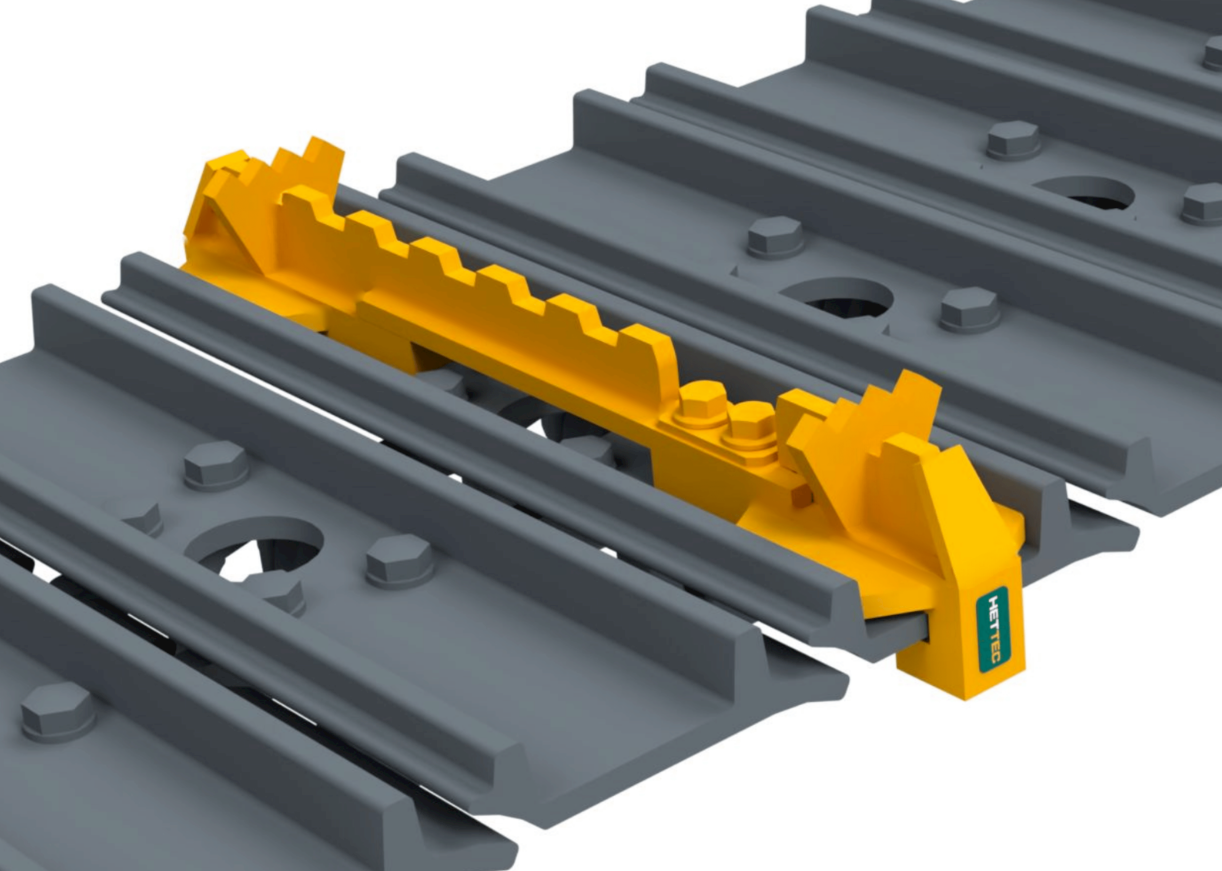

With the patented HETTEC® DSS – Double Safety System, the system is fixed to the base plate in a form-fitting manner and screwed in double.
This guarantees the highest operational reliability even under the most extreme operating conditions.
-
Recommended quantity

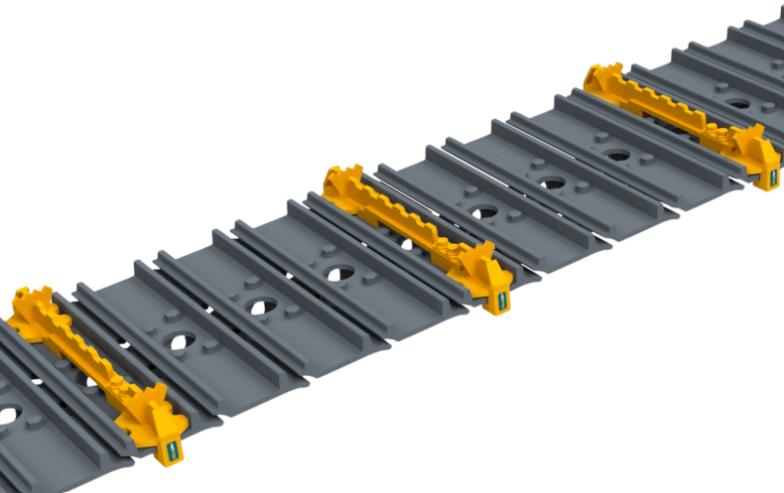

Equipping every fourth floor slab; 20 tons excavator = approx. 24 pieces in total
Mounting system
Patented HETTEC® DSS – Double Safety System; Positive fit with double safety screw connection
Compatibility
Independent of the machine and chain manufacturer
Drive Type
for 3-bar floor plates (optional for 2-bar floor plates)
Machine Type
Mid-size machines from 11 - 40 tons operating weight
Material
High-strength wear steels
Assembly time
approx. 20–30 minutes (per machine)
-
500MM
550MM
600MM
700MM
750MM
800MM
-
Forestry, steep slopes, mud, snow, ice, ski slopes, icy forest roads, rough terrain, side slopes
