Below is a listing of spare parts for Rotogrip products. Please contact us for orders or inquiries and questions.


Rotogrip Pneumatic diagram

Screen Shot 2019-03-06 at 7.54.33 AM.png

universal Adapter

Screen Shot 2019-03-06 at 8.56.35 AM.png
Screen Shot 2019-03-06 at 7.54.43 AM.png

Mounting of chain wheel

Screen Shot 2019-03-06 at 7.55.00 AM.png

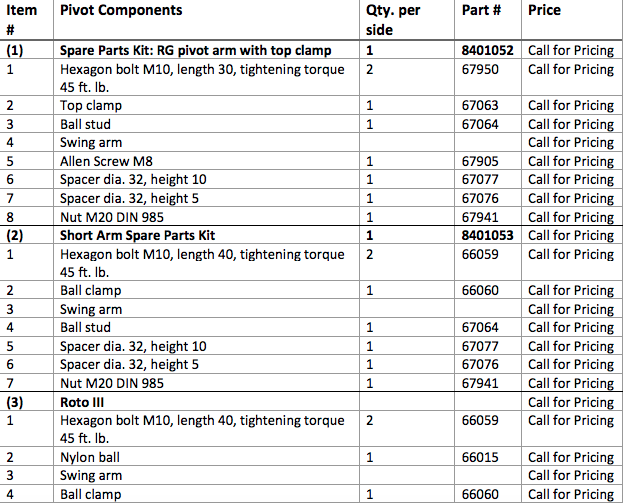

mounting and Location of Pivot Assembly

Screen Shot 2019-03-06 at 8.56.44 AM.png
Screen Shot 2019-03-06 at 7.55.12 AM.png

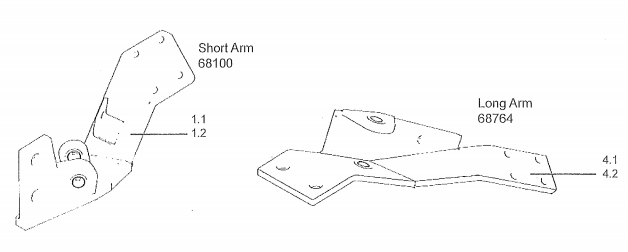

swing arm

Screen Shot 2019-03-06 at 11.41.09 AM.png

All Rud Rotogrip swing arms are marked with the appropriate article number. Please use this number when ordering spare parts.

IMPORTANT: When ordering swing arms refer to “mounting of chain wheel” (6) and “mounting and location of pivot assembly.” (7) Located above.

Screen Shot 2019-03-06 at 7.55.29 AM.png

diaphragm Cylinder

Screen Shot 2019-03-06 at 8.57.27 AM.png
Screen Shot 2019-03-06 at 7.55.40 AM.png

cylinder mount

Screen Shot 2019-03-06 at 11.41.35 AM.png
Screen Shot 2019-03-06 at 7.55.53 AM.png

10&15 Strand

Screen Shot 2019-03-06 at 8.57.42 AM.png
Screen Shot 2019-03-06 at 7.56.08 AM.png

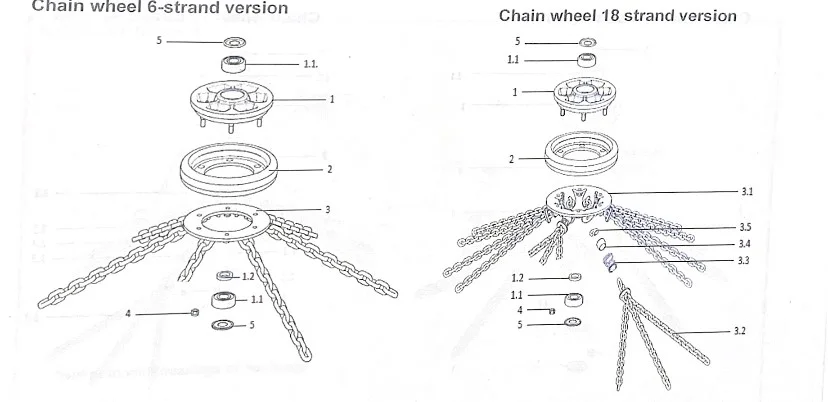

6&18 Strand

Screen Shot 2019-03-06 at 7.56.18 AM.png

Extension Nuts

Screen Shot 2019-03-06 at 7.56.39 AM.png

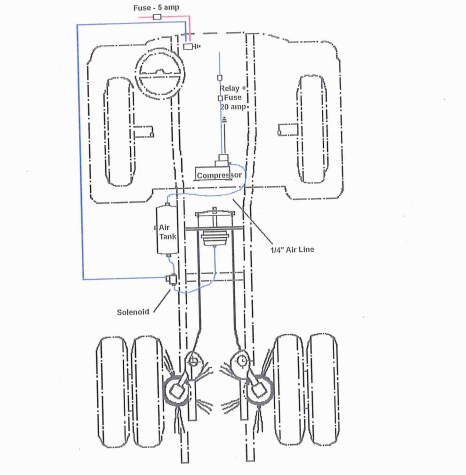

Rotogrip III Compressor/Switch Diagram

Screen Shot 2019-03-06 at 8.57.57 AM.png
Screen Shot 2019-03-06 at 7.56.59 AM.png

chain wheel, 8 strand version


mount with U-bolt and clamp

Screen Shot 2019-03-06 at 7.57.31 AM.png

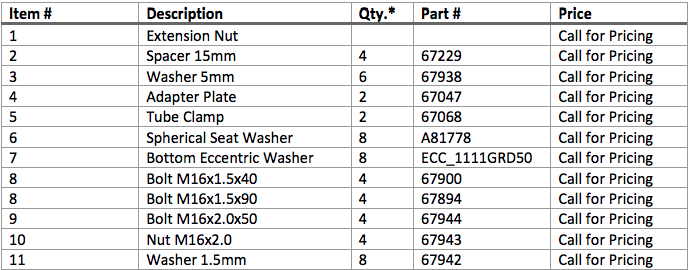

Mount with Extension Nuts and Adapter Plates

Screen Shot 2019-03-06 at 7.57.41 AM.png

swing Arm Assembly

Screen Shot 2019-03-06 at 7.57.53 AM.png

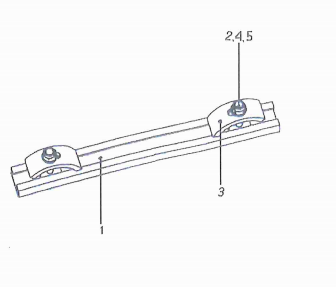

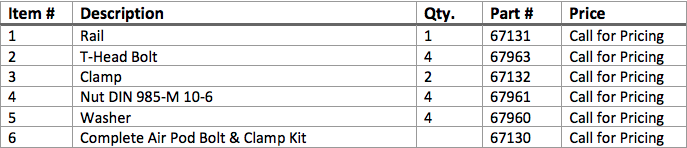

Pneumatic Cylinder Assembly

Screen Shot 2019-03-06 at 7.58.09 AM.png

Screen Shot 2019-03-06 at 8.58.45 AM.png
Screen Shot 2019-03-06 at 7.58.23 AM.png








Please Note:

Lubricating Points- Check the lubrication and pivot points of the automatic chains as part of the routine servicing

Air Cylinder- Inspect for damage and corrosion. Clean with a high pressure sprayer, allow to dry and spray lightly with a light oil

Pivoting Movement- Activate several times with the vehicle at rest. Replace parts if damaged or worn

Hex Bolts- Check torque specifications (see assembly instructions)

Chain Wheels- Check torque and condition of chain wheel chains, check contact ring and bearings. Replace when needed

Contact Height- Check contact height of chain wheels on the tire sidewalls according to data in the mounting instructions. Check condition of vehicle tires and take account of tire wear. Correct dimension “c” (contact height-see assembly instructions) if necessary

Recommendations- Remove the cylinder units during the summer. To do this, release the two retaining bolts for the cylinder bracket and mounting tube. Follow the assembly instructions when fitting. Prevent dirt from entering the compressed air lines

Warranty: Rotogrip is warranted to be free from defects in material and/or workmanship for one year. Chain wear is not considered for warranty. Use of non-RUD replacement parts voids the warranty. Damage due to misuse or misapplication voids the warranty.
